5cm Small 800-2700MHz LTE GSM Full Netcom Terminal 2G 3G 4G Walkie Talkie Antenna SMA Male
- In stock, ready to ship
ELECTRICAL SPECIFICATIONS
Frequency Range: 800-960/1700-3000MHz
Gain: 2DB/3.5DB
V.S.W.R: less 1.5
Input Impedance: 50ohm
Radiation: Omni
Maximum Power Input-watts: 10W
Polarization: Vertical
MECHANICAL SPECIFICATIONS
Connector Type: SMA-male
Net Weight: 0.05kg

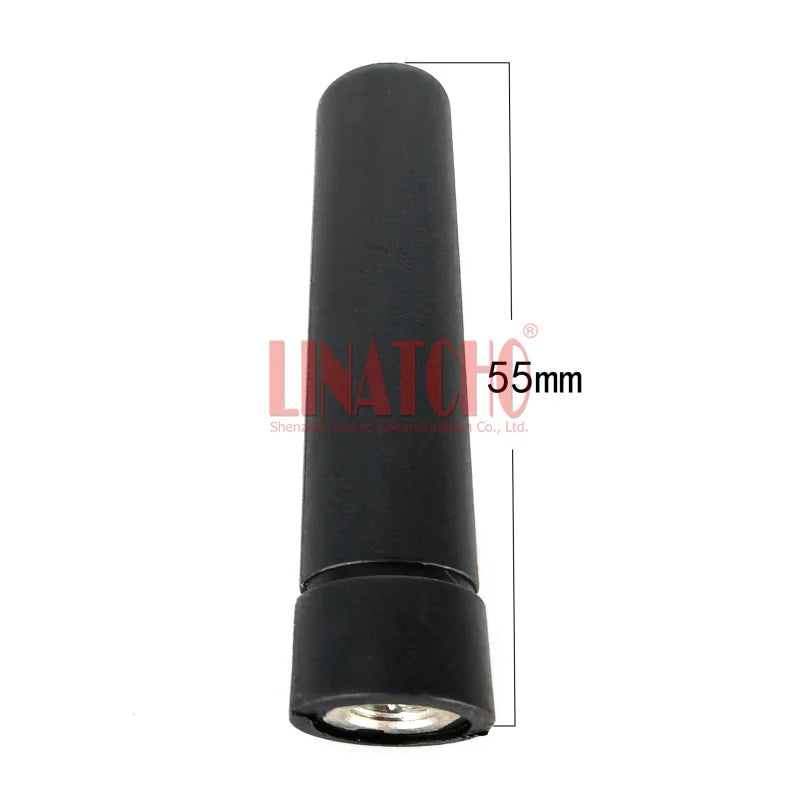

Length: 55mm
Diameter: 1.5cm
Radome Color: Black
Radome Material: TPEE
Products Description
This antenna is only 6cm. It can use for almost SMA female connector GSM 3G 4G walkie talkie with operator's mobile phone card.
The shell is made of high-quality rubber and is not easily damaged.
Low VSWR to protect the walkie-talkie well.
